Tactile Solutions

Engineered Tactile Solutions For Safer & More Accessible Spaces

Premium tactile guidance systems designed to improve accessibility, safety and navigation across public infrastructure, transportation facilities, commercial buildings and urban developments.

5+ Yrs
Product Warranty
Global
Installations
PU · SS
Material Range
End-to-End
Project Support

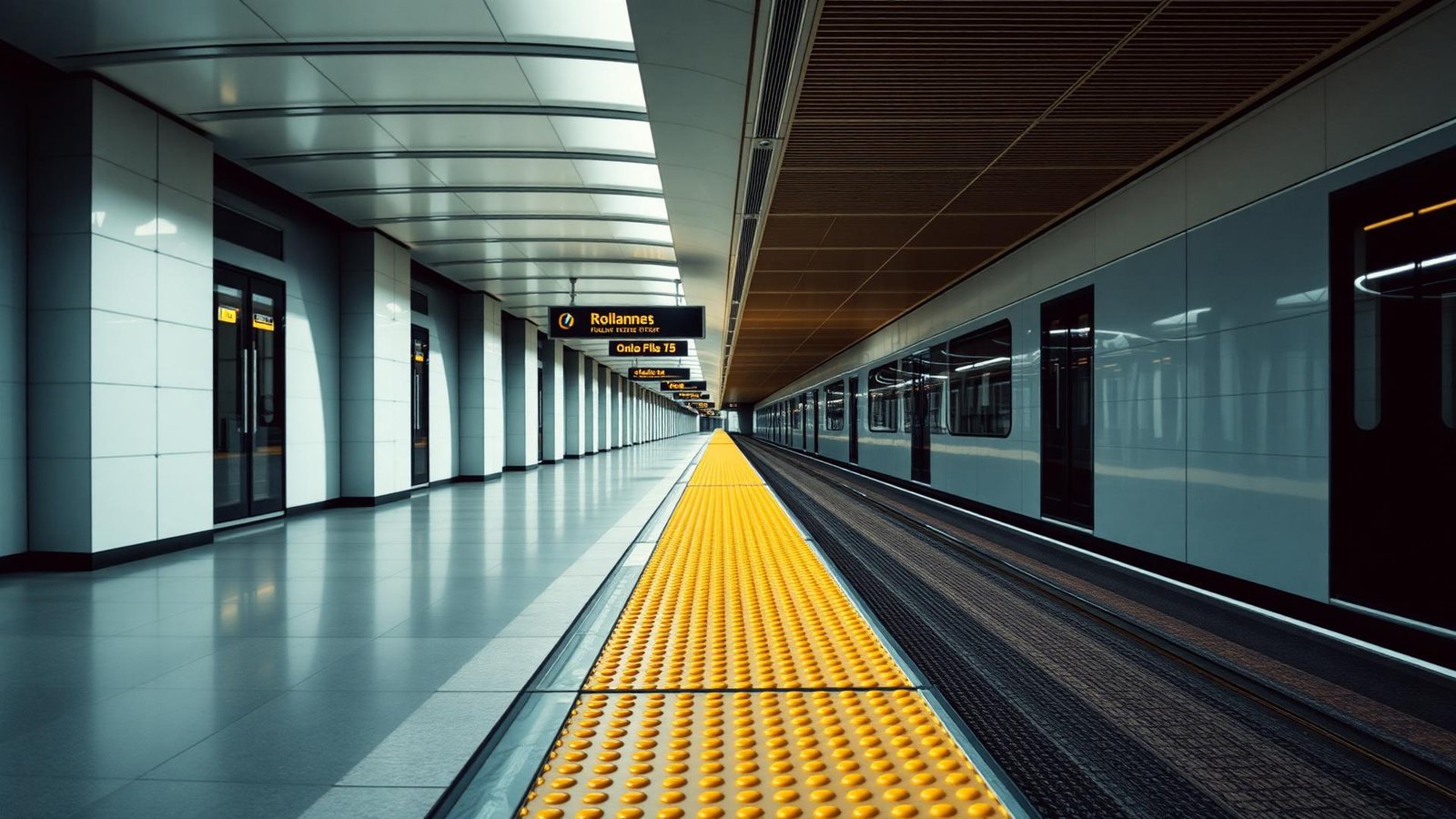

Metro station platform with tactile warning tiles installed along edge

▸ Tactile Solutions · Accessibility · Safety · Guidance

Accessibility, Safety & Infrastructure Guidance Systems.

T·00 - Introduction

A complete tactile and accessibility product portfolio.

MetCast Technologies provides a comprehensive range of tactile guidance and accessibility products designed to support safe pedestrian movement and comply with accessibility requirements in public and commercial environments.

Our tactile solutions are manufactured using high-quality materials and are engineered for long-term durability, heavy pedestrian traffic, outdoor exposure and demanding infrastructure applications.

From tactile tiles and warning indicators to stainless steel tactile studs, stair nosing systems and edge protection products, we deliver complete accessibility solutions supported by technical expertise, installation support and global supply capabilities.

Product Range · 01 · T·PU

Polyurethane tactile tiles.

A complete PU tactile tile family engineered for accessibility, safety and long service life in heavy-traffic public environments — cast from high-density polyurethane elastomer with UV-stabilised pigments.

Directional Tactile Tiles
▸ PU·01

Directional Tactile Tiles

Parallel raised-bar profile guiding pedestrian travel paths along safe walking corridors. Deployed as continuous guidance lines through concourses, platforms and public plazas.

Material
Cast polyurethane elastomer (PU)
Pattern
Linear directional bars
Standard Sizes
300×300 · 400×400 · 300×600 mm
Thickness
5 – 6 mm (surface mount)
Colours
Safety Yellow · Grey · Terracotta · Black · White · Custom RAL
Warning Tactile Tiles
▸ PU·02

Warning Tactile Tiles

Truncated dome / blister pattern marking hazards, level changes, platform edges, staircases and pedestrian decision points. Compliant with international accessibility specifications.

Material
Cast polyurethane elastomer (PU)
Pattern
Truncated dome studs (blister)
Standard Sizes
300×300 · 400×400 mm
Thickness
5 – 6 mm
Colours
Safety Yellow · Grey · Terracotta · Custom RAL
▸ COMMON PU TILE PERFORMANCE

Engineered for real-world traffic.

All MetCast PU tactile tiles are qualified against the same core performance envelope — from wet slip resistance and load capacity through to chemical, UV and thermal endurance.

Load Capacity> 5 tonnes/m² (heavy pedestrian & rolling load)
Slip ResistanceR11 – R13 (DIN 51130, wet & dry)
UV ResistanceStabilised for prolonged outdoor exposure
Weather ResistanceRain, humidity, temperature cycling
Chemical ResistanceCleaning agents, mild acids & alkalis, hydrocarbons
Macro detail of polyurethane tactile warning tile
Product Range · 01B · T·PU-S

Polyurethane tactile studs.

Individually placed PU studs for custom warning fields, curved layouts and refurbishment work where full tiles are not viable.

Polyurethane tactile studs
PU Tactile Studs

Individually placed elastomeric studs for warning fields on complex or curved layouts where tiles cannot be used.

PU Directional Studs

Linear PU markers used to compose custom directional paths across mixed floor materials.

PU Warning Studs

Truncated-dome PU studs installed at platform edges, ramps, level changes and hazard boundaries.

▸ PRODUCT DATA
▸ Sizes: Ø 25 · 30 · 35 mm
▸ Material: PU elastomer
▸ Finish: Matte / semi-gloss
▸ Adhesive Fixing: M-Adhesive back
▸ Mechanical Fixing: Threaded stem + anchor
▸ Applications: Custom layouts · Retrofit
Special Feature · T·ADH

M Adhesive backing technology.

Drill-free, peel-and-bond installation engineered for speed, cleanliness and long-term reliability across concrete, marble, granite, ceramic, vitrified tile and metal substrates.

Installer bonding polyurethane tactile tile
Drill-Free

No substrate damage or anchor hardware.

Peel & Stick

Release liner off, position, press to bond.

Strong Bond

PSA engineered for outdoor exposure & thermal cycling.

Reduced Install Time

60%+ faster than mechanical anchor systems.

▸ INSTALLATION PROCESS · 6 STEPS
  1. 01
    Surface Preparation

    Clean substrate — remove dust, oil, curing compound and loose particles.

  2. 02
    Layout & Marking

    Chalk-line the tile grid as per drawings. Verify alignment orientation.

  3. 03
    Release Liner Removal

    Peel the release liner from the M-Adhesive backing layer cleanly.

  4. 04
    Placement & Bonding

    Position the tile precisely on layout. Roll with a heavy hand roller.

▸ COMPATIBLE SUBSTRATES
Concrete Marble Granite Metal Surfaces
Product Range · 02 · T·SS

Stainless steel tactile products.

Architectural-grade stainless steel tactile indicators for premium installations — combining corrosion resistance with a refined visual finish for luxury commercial and high-traffic public environments.

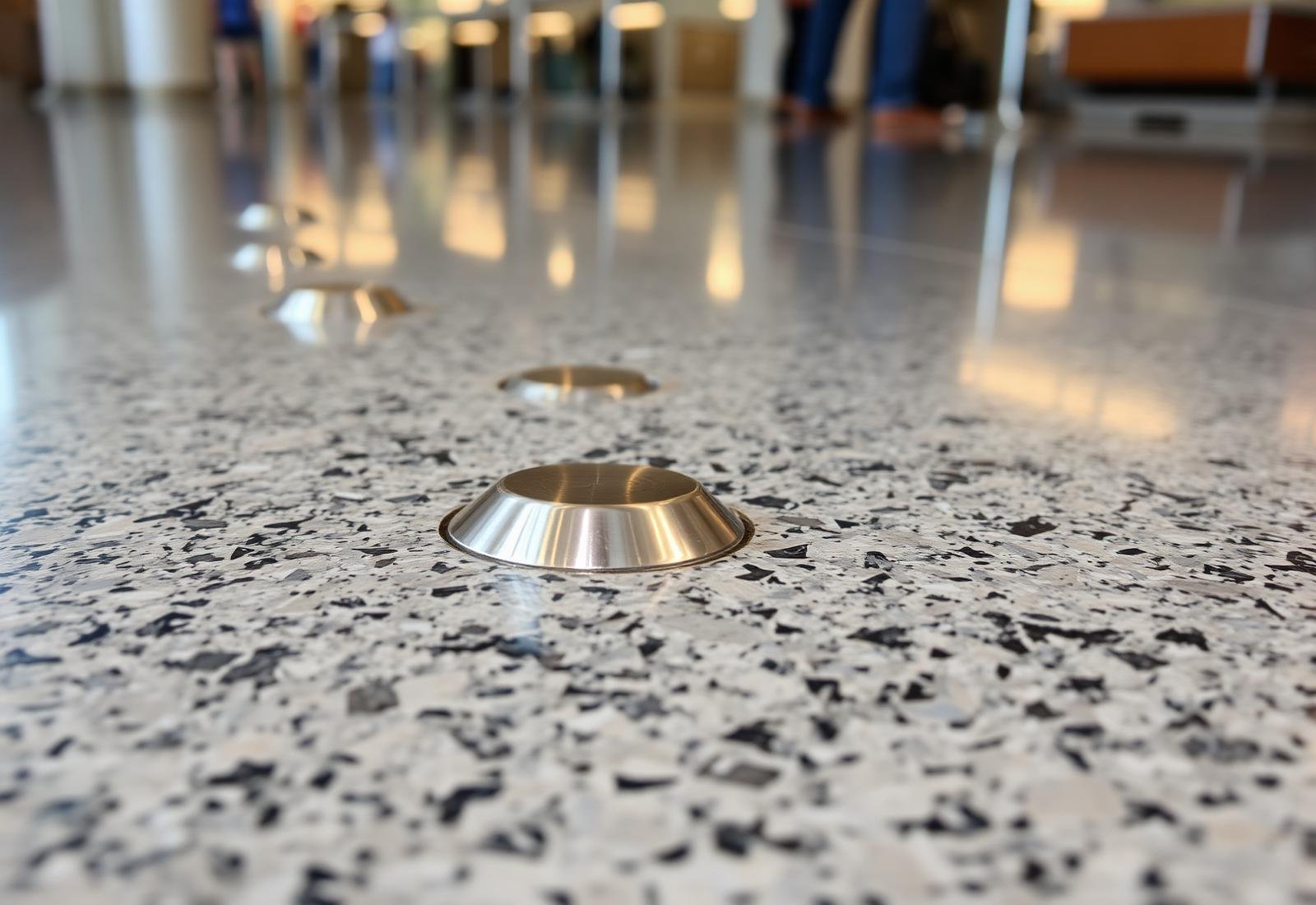

Polished stainless steel tactile warning studs
▸ PRODUCT
Stainless Steel Tactile Studs

Machined round studs with knurled or smooth head for premium indoor architectural installations.

▸ PRODUCT
Stainless Steel Warning Studs

Domed blister studs for hazard fields on marble, granite and vitrified floors.

▸ SS TACTILE SPECIFICATIONS
GradeAISI 304 (standard) · AISI 316 (marine / chemical exposure)
FinishMirror polish · Satin brushed · Sandblast · Knurled top
Heavy TrafficLoad-tested for airports, metro & retail environments

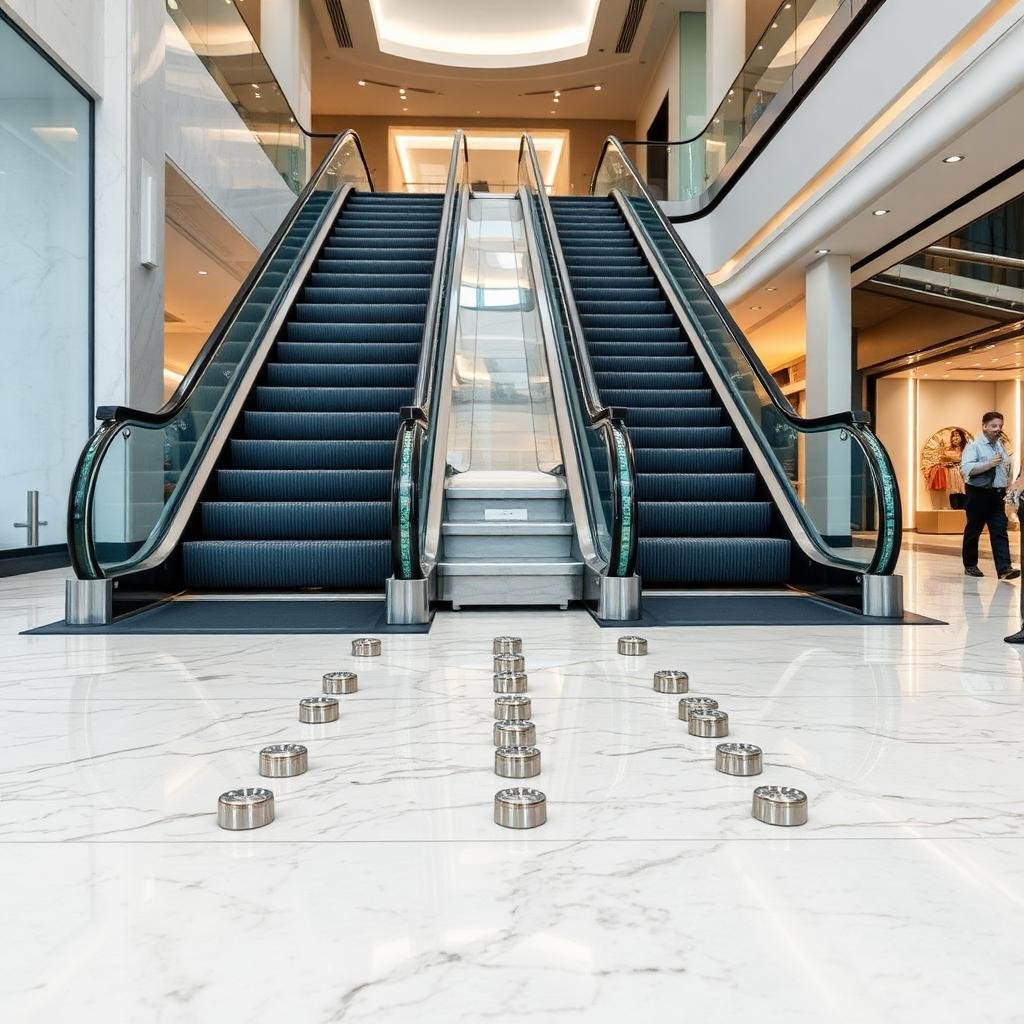

Stainless steel tactile studs on mall floor
Product Range · 03 · T·SN

Stair safety systems.

Engineered stair nosing and edge protection systems combining anti-slip performance with refined architectural finish — for public buildings, transit facilities, hotels and commercial towers.

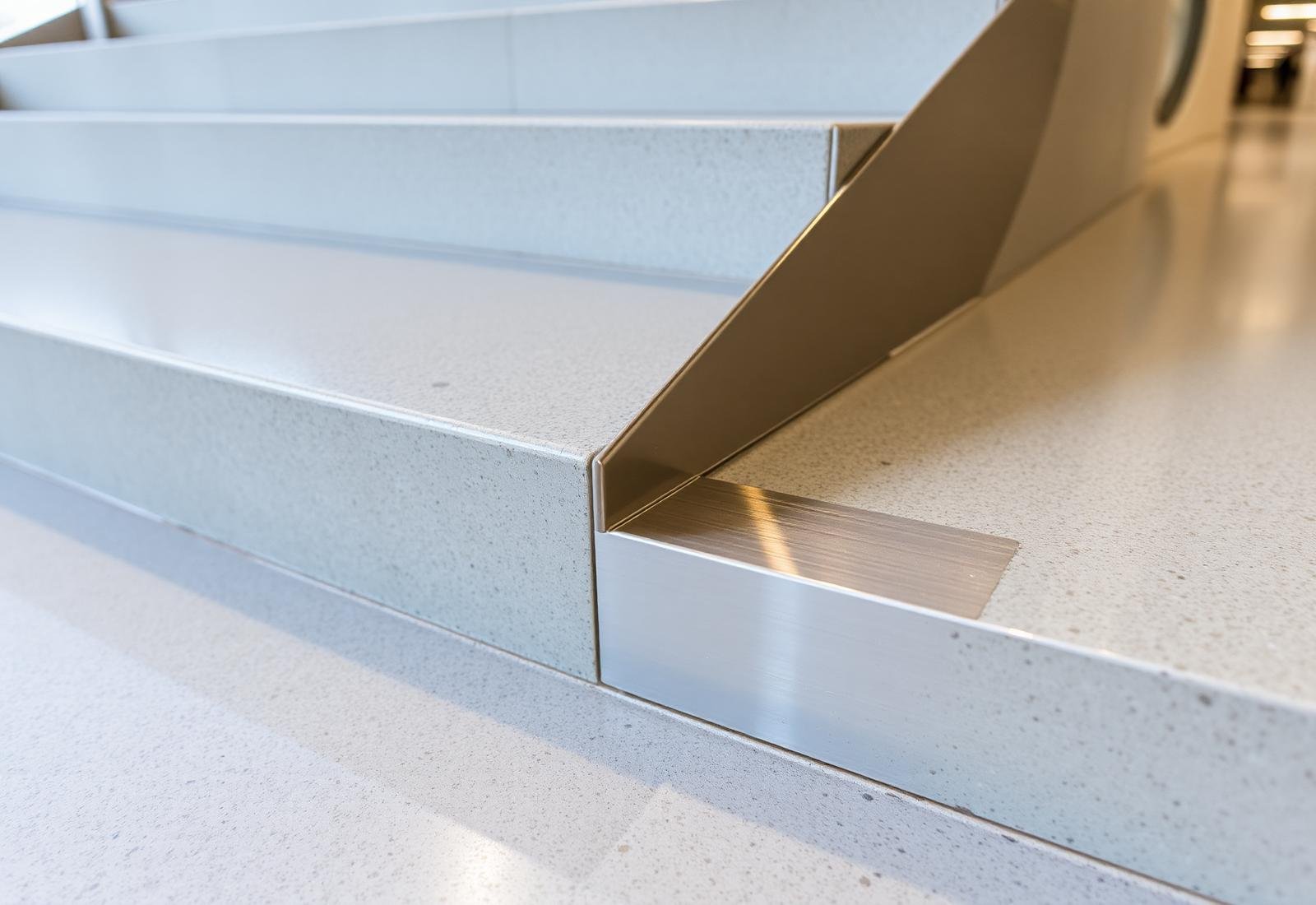

Stainless steel stair nosing on commercial stairs
PU Stair Nosing

Anti-slip polyurethane nosing bonded to step edges — high-visibility contrast stripe options.

Stainless Steel Stair Nosing

Architectural SS 304 / 316 nosing with anti-slip inserts for premium commercial installations.

▸ KEY BENEFITS
▸Slip Prevention
▸Edge Protection
▸Improved Visibility
▸Pedestrian Safety
Technical Reference · T·SPEC

Master technical specifications.

Reference data for architects, PMCs, consultants and procurement teams — covering material, mechanical, environmental and installation parameters of MetCast PU tactile systems.

Base MaterialCast polyurethane elastomer (PU) — 2K system
HardnessShore A 85 – 95 (dome & bar profile)
Tensile Strength≥ 25 N/mm² (ASTM D412)
Slip ResistanceR11 – R13 (DIN 51130, dry & wet)
Operating Temperature−30 °C to +80 °C continuous
Water & Weather

IP-grade sealing, low water absorption, freeze-thaw stable.

UV Stability

Colour-stable pigments engineered for prolonged outdoor exposure.

Compliance

Aligned to international accessibility & anti-slip benchmarks.

Applications · T·APP

Where MetCast tactile solutions are installed.

From transit infrastructure and civic buildings to healthcare, education, hospitality and industrial facilities.

Railway Stations
▸ APPLICATION
Railway Stations

Platform-edge warning fields and directional guidance across concourses, footbridges and subways.

Metro Systems
▸ APPLICATION
Metro Systems

Continuous accessibility routing between entries, ticketing halls, escalators and platform edges.

Airports
▸ APPLICATION
Airports

High-durability guidance from kerb-side to boarding gate through terminals, security and duty-free zones.

Hospitals & Healthcare
▸ APPLICATION
Hospitals & Healthcare

Continuous guidance from entrance to reception, critical for visually impaired patients.

▸ Catalogue · T·DOC

Download Tactile Solutions Catalogue.

Complete product range, technical specifications, sizes, installation guidelines and application examples — packaged for architects, consultants, contractors and procurement teams.

Tactile Solutions Catalogue PDF · Latest Edition Request specifications & drawings
Tactile Division Contact · T·CTA

Speak with the Tactile Solutions team.

▸ FOR PRODUCT ENQUIRIES

Direct line to the Tactile Solutions desk.

Request a quotation, download the catalogue, book a technical consultation or arrange installation support — handled directly by our dedicated tactile product team.

Email keval@metcast.in Mobile +91-7575059191

▸ Tactile Division Direct Contact

Dedicated to Tactile Solutions enquiries only. For general business enquiries, please visit our Contact page.
